Exciscope Polaris phase contrast reconstruction with CIL#

In this notebook, tomographic projections from the Exciscope Polaris instrument are reconstructured using the Core Imaging Library (CIL). The reconstruction includes phase retrieval and ring artefact correction.

[2]:

import os
import numpy as np
import matplotlib.pyplot as plt
from tqdm.notebook import tqdm
from PIL import Image
import qim3d #https://platform.qim.dk/qim3d/ and can be installed using `pip install qim3d`
import matplotlib.pyplot as plt
import json
from cil.framework import AcquisitionGeometry, AcquisitionData
from cil.processors import TransmissionAbsorptionConverter, Slicer, CentreOfRotationCorrector, PaganinProcessor, RingRemover
from cil.recon import FDK
from cil.utilities.display import show2D, show_geometry
from cil.utilities.jupyter import islicer, link_islicer

Cil version 24.2.0#

[3]:

import cil
print(cil.__version__)

24.2.0

Data#

Please download the showcase wood dataset:

In the following cell, please set the paths for your data, output directory and reconstruction name:

[4]:

# choose scan path
scan_path = "/mnt/share-private/ses-240826-143058-woodzoom"
output_dir = "/mnt/share-private/ses-240826-143058-woodzoom/output/"
recon_name = "wood_test"

The data from the Exciscope Polaris is available in two folders: 01-ff containing flat field images and 02-tomo containing the tomographic projections. The image files are in .tiff-format. The flat-field and projection images align around the image centers. Meta-data is in .json-format. The data structure is visualized below:

├── 01-ff/
│   ├── Input/
│   │   └── command.json
│   └── Output/
│       └── Binaries/
│           ├── f0000.tiff
│           ├── f0001.tiff
│           └── ...
├── 02-tomo/
│   ├── Input/
│   │   └── command.json
│   ├── Output/
│   │   └── Binaries/
│   │       ├── tomo0000.tiff
│   │       ├── tomo0001.tiff
│   │       └── ...
│   └── scan_information.json
└── scan_list.scanlist

Import Metadata#

The metadata needed for the reconstruction is extracted from the instrument files. Note! The pixel size is not available in the metadata and has been indicated manually for the used camera.

[5]:

with open(scan_path+'/02-tomo/scan_information.json', 'r') as f:
  scan_information = json.load(f)
with open(scan_path+'/02-tomo/Input/command.json', 'r') as f:
  tomo_command = json.load(f)
with open(scan_path+'/01-ff/Input/command.json', 'r') as f:
  flat_command = json.load(f)

# Parsing of parameters from file
voxel_size_mm = scan_information['pixel_size_um']/1000
propagation_distance_mm = scan_information['propagation_distance_mm']
source_detector_mm = tomo_command['stage_position_mm']['camera_beam']
source_object_mm = tomo_command['stage_position_mm']['object_beam']
roi = tomo_command['camera']['roi_px']
num_pixels = [roi['right']-roi['left']+1,roi['bot']-roi['top']+1]
total_angle_deg = tomo_command['acquisition']['total_angle_deg']
step_size_deg = tomo_command['acquisition']['step_size_deg']

# The Detektor pixel size is not saved in the metadata.
if tomo_command['camera']['name'] == 'camera-photonicscience-gsense4040xl-221094':
    px_size = 0.016
else:
    print('Camera Name is unknown')
    px_size = 1

Import Projection Data#

Define ROI for Import#

In the following cell, the projections can be cropped in height and width in order to reconstruct a limited volume. The cropping is contucted symmetrically around the center of the projections.

Note, if the default showcase wood-sample is utilized, the flat-field images are larger than the projections, and cropping of the flat-field images will be conducted under all circumstances to match the projections. The flat-field and projection images are aligned around the image center.

[6]:

# We assuming here symmetrical cropping
width = 3500 #num_pixels[0]
height = 100 # num_pixels[1] # change here if only limited number of slices in use

# Tomo Files
path_tomo = os.path.join(scan_path,"02-tomo/Output/Binaries")
files_tomo = os.listdir(path_tomo)
files_tomo.sort()

# Flat Files
path_flat = os.path.join(scan_path,"01-ff/Output/Binaries")
files_flat = os.listdir(path_flat)
files_flat.sort()

flat_example = np.array(Image.open(os.path.join(path_flat,files_flat[0])))
proj_example = np.array(Image.open(os.path.join(path_tomo,files_tomo[0])))
fig, ax = plt.subplots(1,2, figsize = (10,5))
ax[0].imshow(proj_example)
ax[0].set_title('Projection')
ax[1].imshow(flat_example)
ax[1].set_title('Flat')


# display central slice
ax[0].axhline(proj_example.shape[0]//2,linestyle='--')
ax[1].axhline(flat_example.shape[0]//2,linestyle='--')

# calculate index positions
roi_tomo = [proj_example.shape[1]//2 - width //2,
            proj_example.shape[0]//2 - height //2,
            proj_example.shape[1]//2 + width //2,
            proj_example.shape[0]//2 + height //2]

roi_flat = [flat_example.shape[1]//2 - width //2,
            flat_example.shape[0]//2 - height //2,
            flat_example.shape[1]//2 + width //2,
            flat_example.shape[0]//2 + height //2]
ax[0].axvline(roi_tomo[0],color='tab:red')
ax[0].axvline(roi_tomo[2],color='tab:red')
ax[0].axhline(roi_tomo[1],color='tab:red')
ax[0].axhline(roi_tomo[3],color='tab:red')
ax[1].axvline(roi_flat[0],color='tab:red')
ax[1].axvline(roi_flat[2],color='tab:red')
ax[1].axhline(roi_flat[1],color='tab:red')
ax[1].axhline(roi_flat[3],color='tab:red')

[6]:

<matplotlib.lines.Line2D at 0x7f1f2a1a67b0>

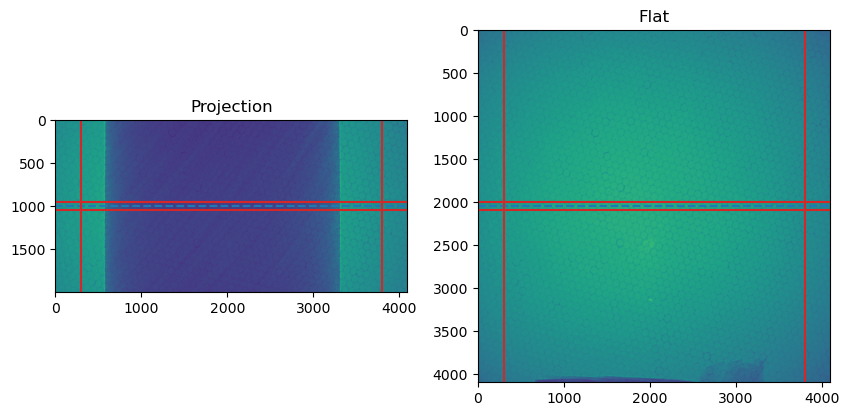

../../_images/demos_recon_phasecontrast_exciscope_12_1.png

Load Data#

If an ROI was chosen above, only the chosen ROI is imported.

[7]:

# Load tomography data
print('Importing Projections...')
data = []
for file in tqdm(files_tomo):
    with Image.open(os.path.join(path_tomo,file)) as img:
        # Crop the image to the ROI (left, upper, right, lower)
        roi = img.crop(tuple(roi_tomo))
    data.append(roi)
data = np.array(data)

print('Importing Flat Images...')
flats = []
for file in tqdm(files_flat):
    with Image.open(os.path.join(path_flat,file)) as img:
        # Crop the image to the ROI (left, upper, right, lower)
        roi = img.crop(tuple(roi_flat))
    flats.append(roi)
flats = np.array(flats)

Importing Projections...

Importing Flat Images...

Define Geometry#

The image geometry is defined using the metadata retrieved from the Exciscope scans using the CIL logic.

[8]:

ag = AcquisitionGeometry.create_Cone3D(source_position=[0,-source_object_mm,0],detector_position=[0,source_detector_mm-source_object_mm,0], units = 'mm')\
    .set_panel(num_pixels=[data.shape[2], data.shape[1]], pixel_size=(px_size, px_size))\
    .set_angles(angles=np.arange(0,360+step_size_deg,step_size_deg))
show_geometry(ag)
ig = ag.get_ImageGeometry()
ig.voxel_size_x = voxel_size_mm
ig.voxel_size_y = voxel_size_mm

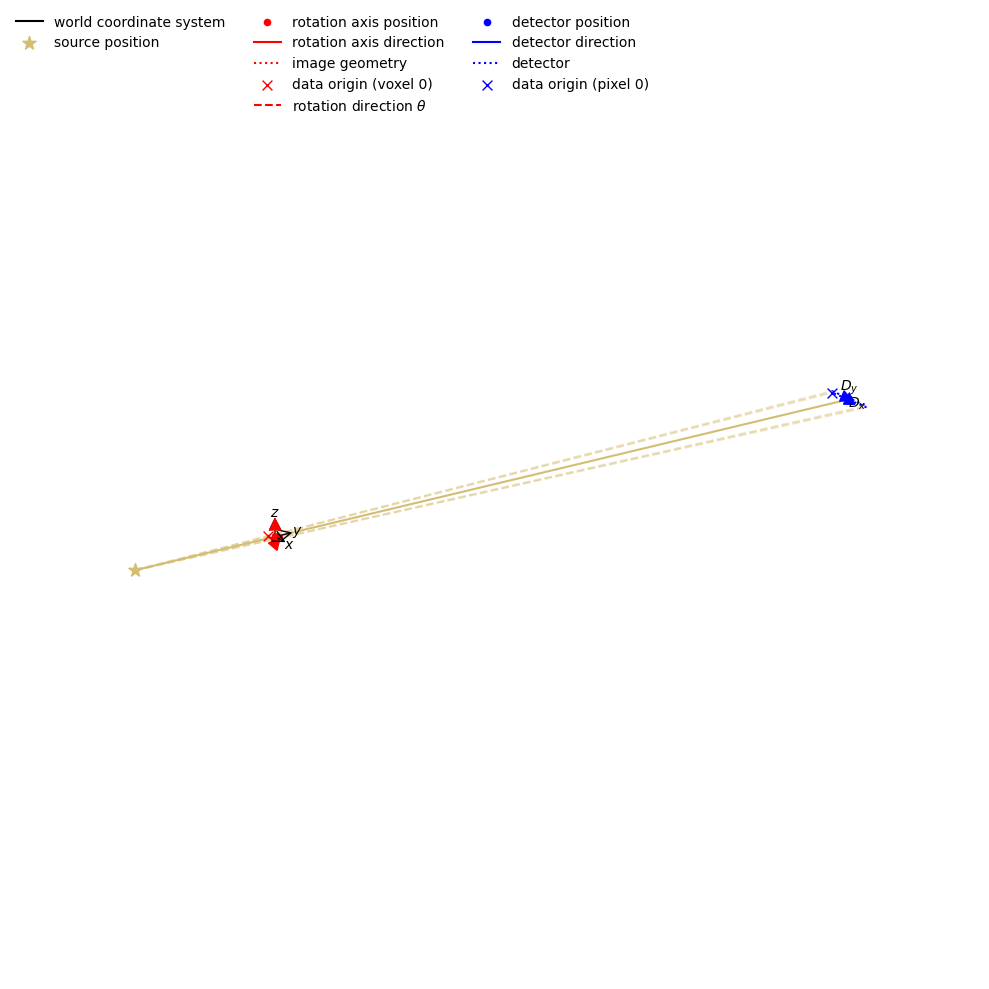

../../_images/demos_recon_phasecontrast_exciscope_16_0.png

Normalize Data#

[9]:

corrected = data / np.average(flats, axis = 0)
del data, flats
corrected = corrected.astype('float32')
sinogram = AcquisitionData(corrected, geometry=ag)
sino = TransmissionAbsorptionConverter()(sinogram)
show2D(sino, slice_list=('vertical', 49))

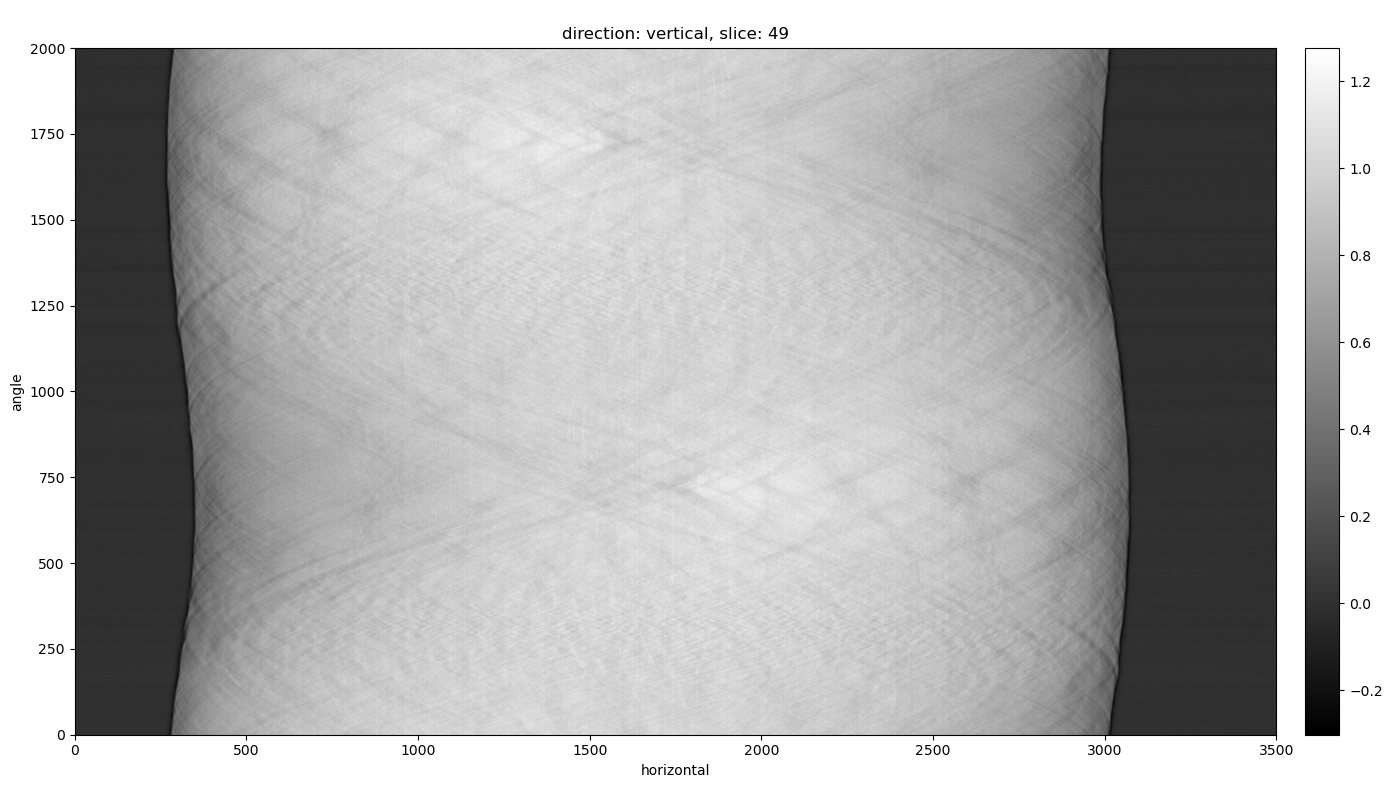

../../_images/demos_recon_phasecontrast_exciscope_18_0.png

[9]:

<cil.utilities.display.show2D at 0x7f1f2a425e20>

Center-of-Rotation#

[10]:

sino.reorder(order='tigre')
processor = CentreOfRotationCorrector.image_sharpness('centre', backend='tigre')
processor.set_input(sino)
sino = processor.get_output()

# Test reconstructionto inspect correct CoR
fdk =  FDK(sino, ig)
recon = fdk.run()
show2D(recon, fix_range = [(0, 0.5)])

FDK recon

Input Data:
        angle: 2001
        vertical: 100
        horizontal: 3500

Reconstruction Volume:
        vertical: 100
        horizontal_y: 3500
        horizontal_x: 3500

Reconstruction Options:
        Backend: tigre
        Filter: ram-lak
        Filter cut-off frequency: 1.0
        FFT order: 13
        Filter_inplace: False

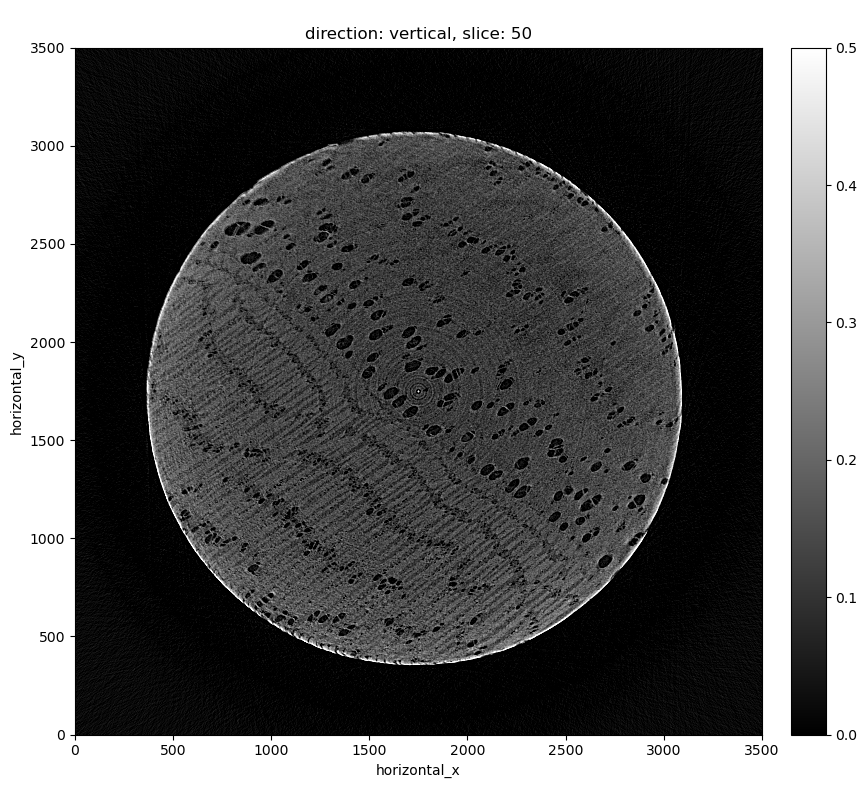

../../_images/demos_recon_phasecontrast_exciscope_20_1.png

[10]:

<cil.utilities.display.show2D at 0x7f1f283cc860>

Ring Artefact Removal#

[11]:

ringRemove = RingRemover()
ringRemove.set_input(sino)
sino_rings = ringRemove.get_output()

fdk_rings = FDK(sino_rings, ig)
recon_rings = fdk_rings.run()

# plot comparison with and with less rings
roi = {'horizontal_y':(1200,2200,1),'horizontal_x':(1200,2200,1)}
slicing = Slicer(roi)
slicing.set_input(recon)
recon_sliced = slicing.get_output()

slicing.set_input(recon_rings)
recon_rings_sliced = slicing.get_output()

show2D([recon_sliced, recon_rings_sliced], fix_range = [(0, 0.5), (0, 0.5)])

Finish Ring Remover
FDK recon

Input Data:
        angle: 2001
        vertical: 100
        horizontal: 3500

Reconstruction Volume:
        vertical: 100
        horizontal_y: 3500
        horizontal_x: 3500

Reconstruction Options:
        Backend: tigre
        Filter: ram-lak
        Filter cut-off frequency: 1.0
        FFT order: 13
        Filter_inplace: False

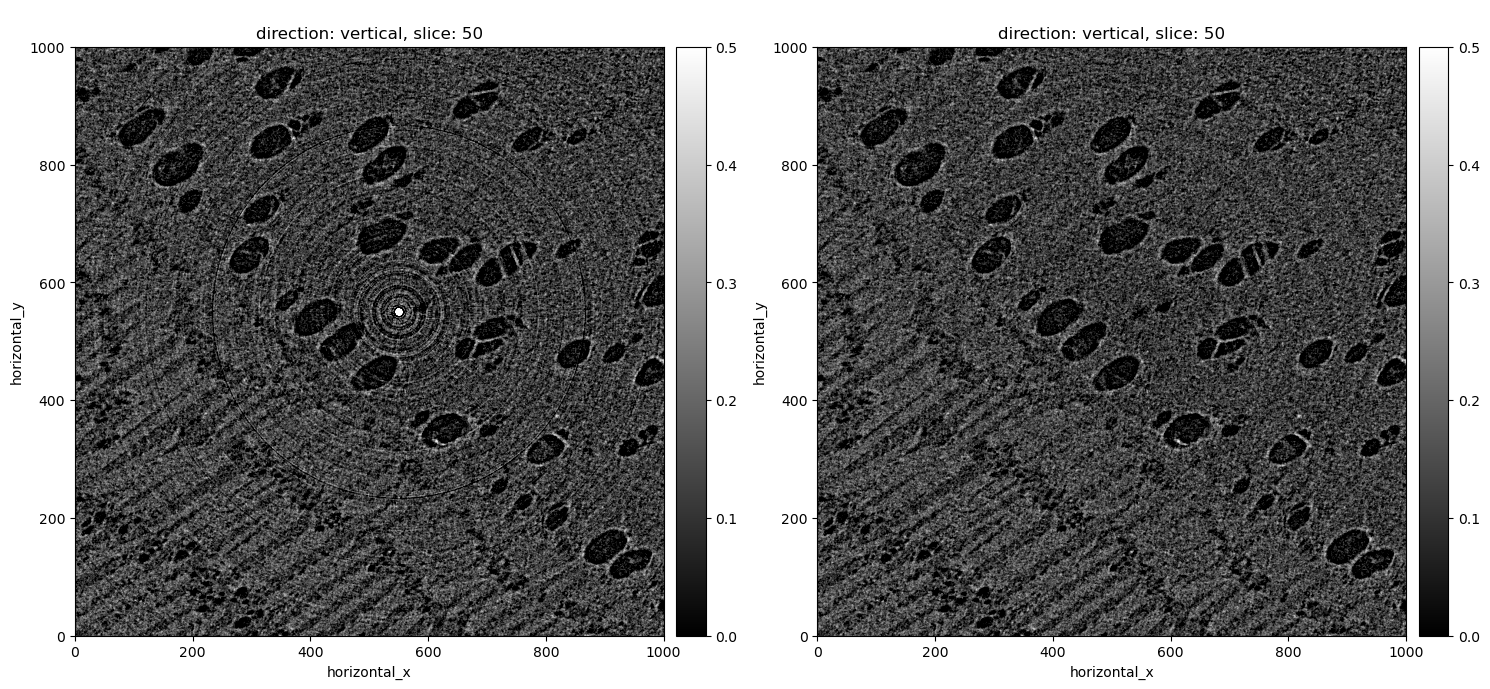

../../_images/demos_recon_phasecontrast_exciscope_22_1.png

[11]:

<cil.utilities.display.show2D at 0x7f1f288621b0>

Paganin Phase Retrieval#

Soft organic materials like wood and soft tissue often don’t show strong absorption contrast in X-ray imaging. One way to circumvent this issue is by using propagation-based phase contrast. In this method, the phase component, $\delta$, of the complex refractive index $n = 1 - \delta `+i :nbsphinx-math:beta `$ is utilized. The sample shifts the phase of the X-rays, and as the X-rays propagate to the detector, phase fringes become visible. These fringes can then be used to retrieve the phase information using a filter.

In this case, the PaganinProcessor of CIL is used to retrieve the phase. Three key parameters need to be specified to obtain the phase information: the X-ray energy and the two components of the refractive index $\delta$ and $\beta$. In this instance, a single energy value was chosen, which was also used in the reconstruction software from the manufacturer. This energy is interpreted as an effective energy for a polychromatic X-ray spectrum. The refractive index must be chosen based on the material being studied. We used a tabulated value from a database (https://henke.lbl.gov/optical_constants/getdb2.html) for polycarbonate (assuming a similar elemental composition and density to wood) at 10 keV energy.

[12]:

# phase retrieval for one material
energy = 10000
delta = 2.63154061E-06 # the used parameters here are polycarbonat at 10 keV
beta = 3.26059624E-09

paganin_processor = PaganinProcessor(delta = delta, beta = beta, energy = energy, full_retrieval= False)
paganin_processor.set_input(sino_rings)
sino_pag = paganin_processor.get_output()

fdk =  FDK(sino_pag, ig)
recon_pag = fdk.run()
show2D([recon_rings, recon_pag], title = ['Absorption contrast', 'Phase contrast'], fix_range=[(0, 0.5), (0, 0.5)])

100%|██████████| 2001/2001 [00:24<00:00, 80.13it/s]

FDK recon

Input Data:
        angle: 2001
        vertical: 100
        horizontal: 3500

Reconstruction Volume:
        vertical: 100
        horizontal_y: 3500
        horizontal_x: 3500

Reconstruction Options:
        Backend: tigre
        Filter: ram-lak
        Filter cut-off frequency: 1.0
        FFT order: 13
        Filter_inplace: False

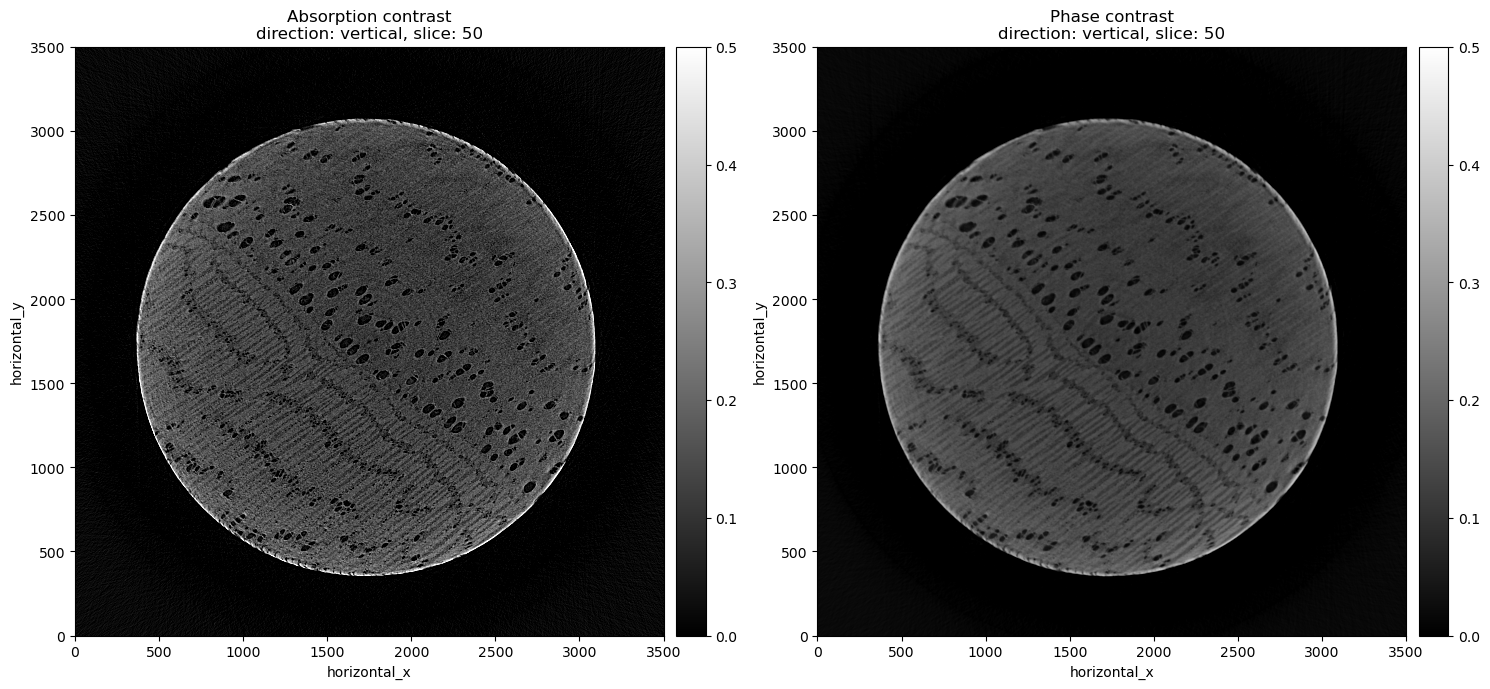

../../_images/demos_recon_phasecontrast_exciscope_24_2.png

[12]:

<cil.utilities.display.show2D at 0x7f1f2a7ffb00>

[13]:

slicing.set_input(recon_pag)
recon_pag_sliced = slicing.get_output()

show2D([recon_rings_sliced, recon_pag_sliced], fix_range = [(0, 0.5), (0, 0.5)])

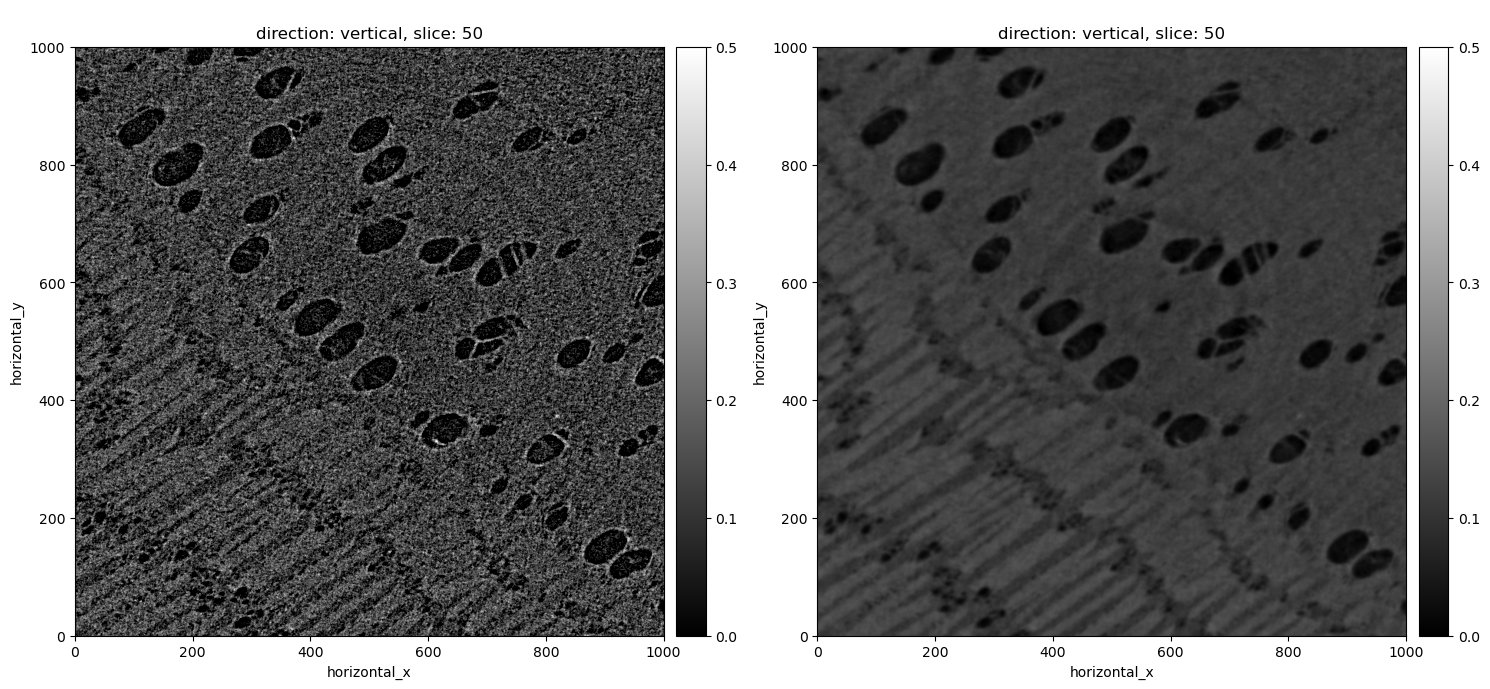

../../_images/demos_recon_phasecontrast_exciscope_25_0.png

[13]:

<cil.utilities.display.show2D at 0x7f1e58641e80>

[14]:

paganin_processor = PaganinProcessor(delta = 1e-12, beta = beta, energy =  energy, full_retrieval= False)
paganin_processor.set_input(sino_rings)
sino_pag_smaller = paganin_processor.get_output()

fdk =  FDK(sino_pag_smaller, ig)
recon_pag_smaller = fdk.run()

100%|██████████| 2001/2001 [00:24<00:00, 80.56it/s]

FDK recon

Input Data:
        angle: 2001
        vertical: 100
        horizontal: 3500

Reconstruction Volume:
        vertical: 100
        horizontal_y: 3500
        horizontal_x: 3500

Reconstruction Options:
        Backend: tigre
        Filter: ram-lak
        Filter cut-off frequency: 1.0
        FFT order: 13
        Filter_inplace: False

[15]:

paganin_processor = PaganinProcessor(delta = 1, beta = 1e-4, energy =  energy, full_retrieval= False)
paganin_processor.set_input(sino_rings)
sino_pag_default = paganin_processor.get_output()

fdk =  FDK(sino_pag_default, ig)
recon_pag_default = fdk.run()

100%|██████████| 2001/2001 [00:26<00:00, 75.64it/s]

FDK recon

Input Data:
        angle: 2001
        vertical: 100
        horizontal: 3500

Reconstruction Volume:
        vertical: 100
        horizontal_y: 3500
        horizontal_x: 3500

Reconstruction Options:
        Backend: tigre
        Filter: ram-lak
        Filter cut-off frequency: 1.0
        FFT order: 13
        Filter_inplace: False

[16]:

show2D([recon_rings, recon_pag_smaller, recon_pag_default, recon_pag], title = ['Absoption', 'Small Delta Value', 'Large Delta Value', 'Polycarbonate'], fix_range=[(0, 0.5), (0, 0.5), (0, 0.5), (0, 0.5)])

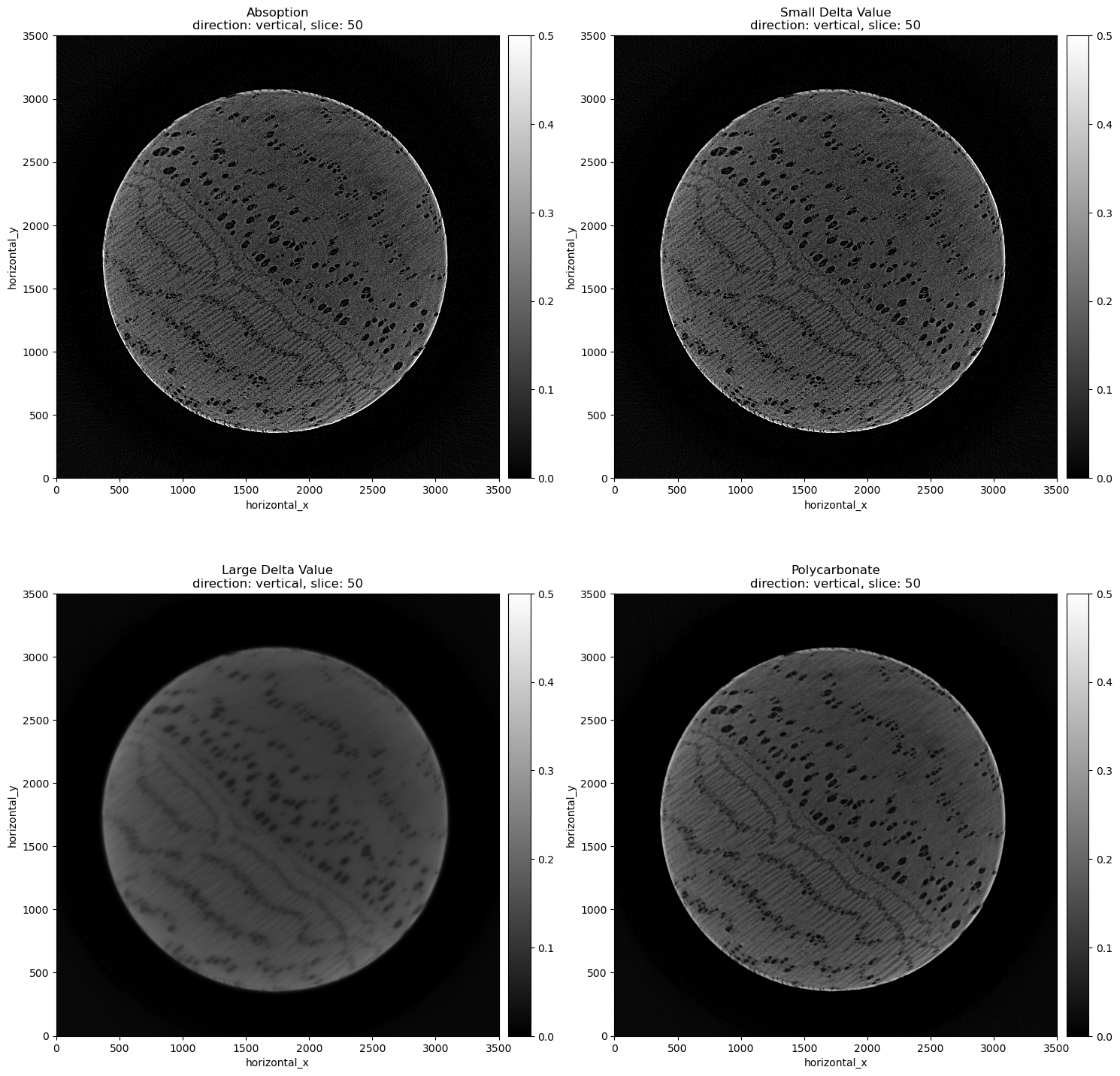

../../_images/demos_recon_phasecontrast_exciscope_28_0.png

[16]:

<cil.utilities.display.show2D at 0x7f1e585ad700>

[17]:

slicing.set_input(recon_pag_default)
recon_pag_default_sliced = slicing.get_output()

slicing.set_input(recon_pag_smaller)
recon_pag_smaller_sliced = slicing.get_output()

show2D([recon_rings_sliced, recon_pag_smaller_sliced, recon_pag_default_sliced, recon_pag_sliced], title = ['Absoption', 'Small Delta Value', 'Large Delta Value', 'Polycarbonate'], fix_range = [(0, 0.5), (0, 0.5), (0, 0.5), (0, 0.5)])

../../_images/demos_recon_phasecontrast_exciscope_29_0.png

[17]:

<cil.utilities.display.show2D at 0x7f1e5824d430>

In the previous cell, you can see a comparison between different chosen refractive indices for the phase retrieval. The ratio between $\delta$ and $\beta$ has to be optimized for each sample. The four images shown are:

Absorption: The reconstruction without phase retrieval. Not all features are clearly distinguishable, and phase fringes are visible, especially at the borders of larger pores. The image appears noisy.
Polycarbonate: The contrast between features is improved, and the fringes have disappeared. The image looks less noisy, as the phase retrieval also acts as a low-pass filter.
Small Delta Value: A small $\delta$ is chosen while $\beta$ remains the same as for polycarbonate. There is not much improvement compared to the absorption image.
Large Delta Value: A large $\delta$ is chosen while $\beta$ remains the same as for polycarbonate. In this case, too much phase retrieval has been applied. The contrast is improved, but the image appears blurred.

Data Export#

The data is exported using the qim3d package. 4 version are exported:

Phase contrast full volume (of the ROI selected at the beginning)
Phase contrast downsampled volume
Absoption contrast full volume
Absoption contrast downsampled volume

All volumes are exported as TIFF stacks.

Data Cropping#

[18]:

recon_pag_roi = recon_pag.as_array()[:,500:-500,500:-500]
recon_roi = recon.as_array()[:,500:-500,500:-500]

Saving of Absorption Data#

[19]:

recon_pag_roi = recon_pag_roi.astype('float16')
qim3d.io.save(output_dir+f"/{recon_name}_recon_pag.tiff",recon_pag_roi,replace=True)
qim3d.io.save(output_dir+f"/{recon_name}_recon_pag_4x4.tiff",recon_pag_roi[:,::4,::4],replace=True)

Saving of Phase Retrieved Data#

[20]:

recon_roi = recon_roi.astype('float16')
qim3d.io.save(output_dir+f"/{recon_name}_recon_abs.tiff",recon_roi,replace=True)
qim3d.io.save(output_dir+f"/{recon_name}_recon_abs.tiff",recon_roi[:,::4,::4],replace=True)

Inspect 3D Volume#

The volume can be visualised using the qim3d package.

[21]:

qim3d.viz.vol(recon_pag_roi[:,::4,::4])

Table of Contents
